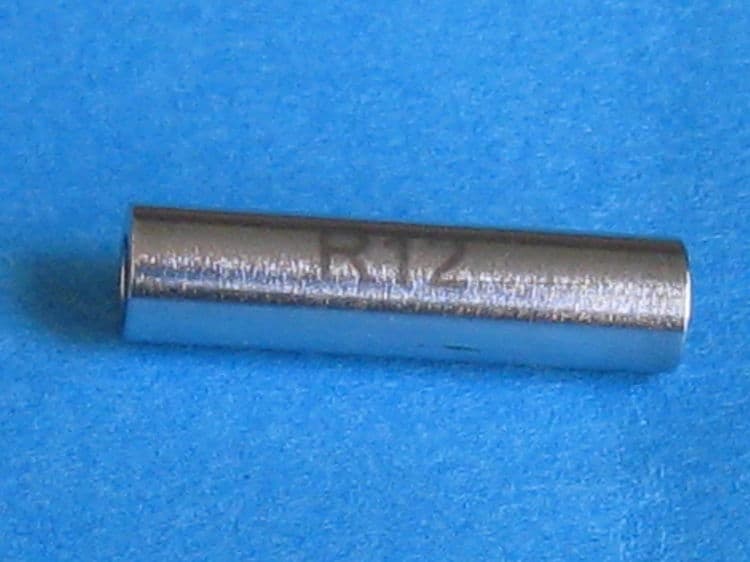

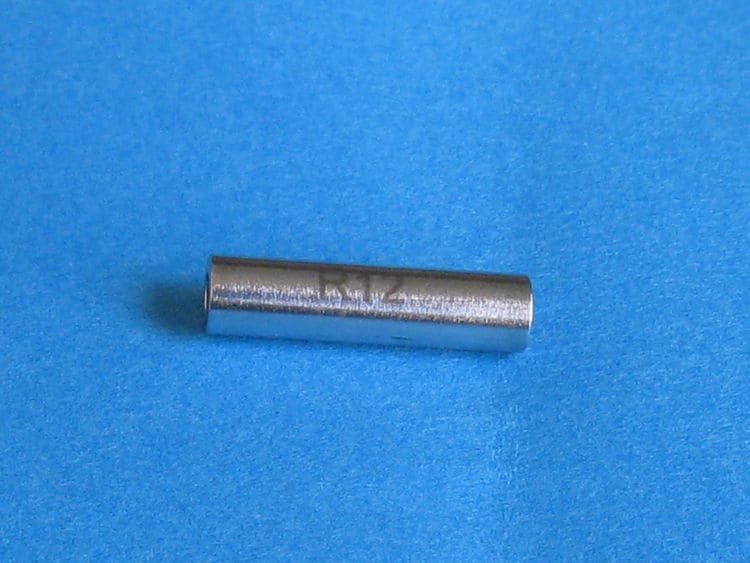

Tube Flow Restrictor

  • Tube restrictors are the fast, easy and inexpensive way to add flow restriction to your system
  • With N, R or F orifices they are suitable for welding connections
  • Any orifice can be used with compression fittings
  • Tube restrictors, unlike gaskets, provide an externally verifiable element in the system,
        with an observable orifice ID applied to the part
  • 1/4" by 1.0"

    • Weldable Tube Restrictor Compression fitting

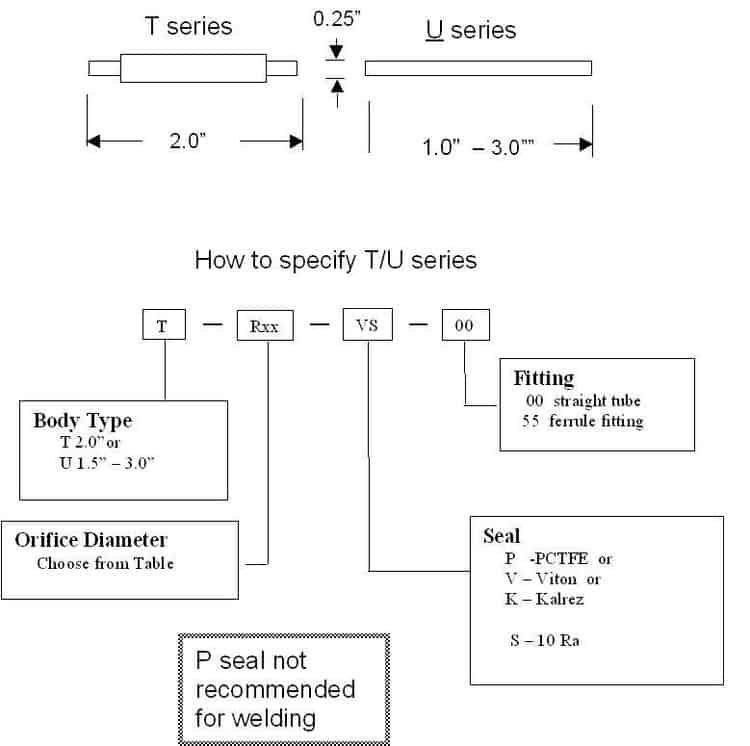

    T-YXX-FS-00
    for N, R & F orifices     		T-YXX-VS-05 for S & T orifices

    T-YXX-FS-05 for N, R & F orifices

    -05N for Ni inline filter

             Wetted materials

               Weldable: 316L SS with FS orifices, 316L SS and sapphire with N&R orifices
               Compression: 316L SS with FS orifices, 316L SS and sapphire with N&R orifices,
               316L SS, silicon, Viton & PCTFE with S&T orifices
               Ni with inline filter



                YXX Orifice Information
